Vortex Ranger HD 10x42 Rangefinder Binocular - Vortex Optics at Newpro UK Ltd

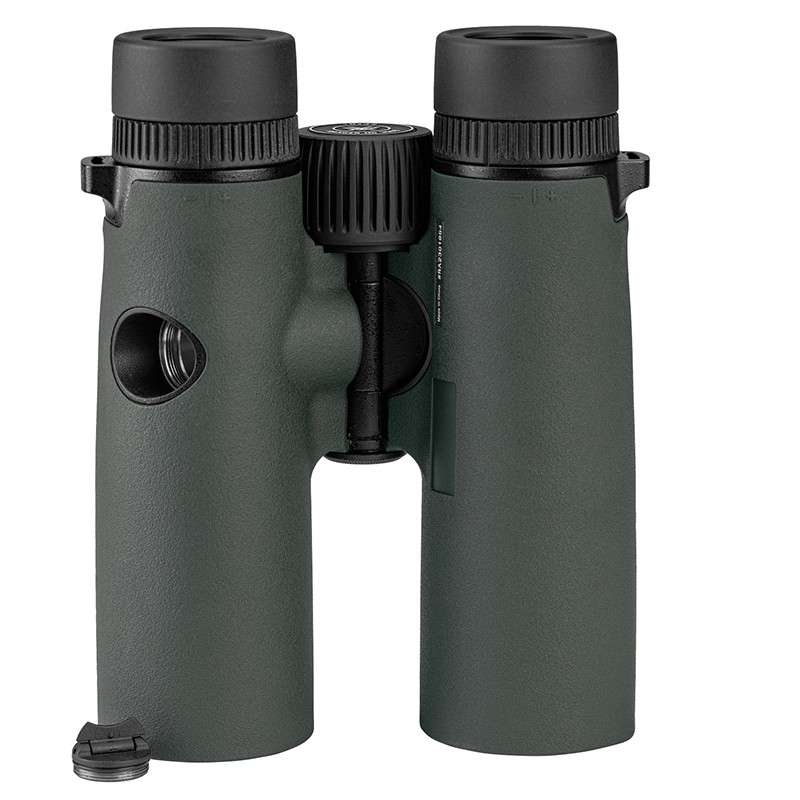

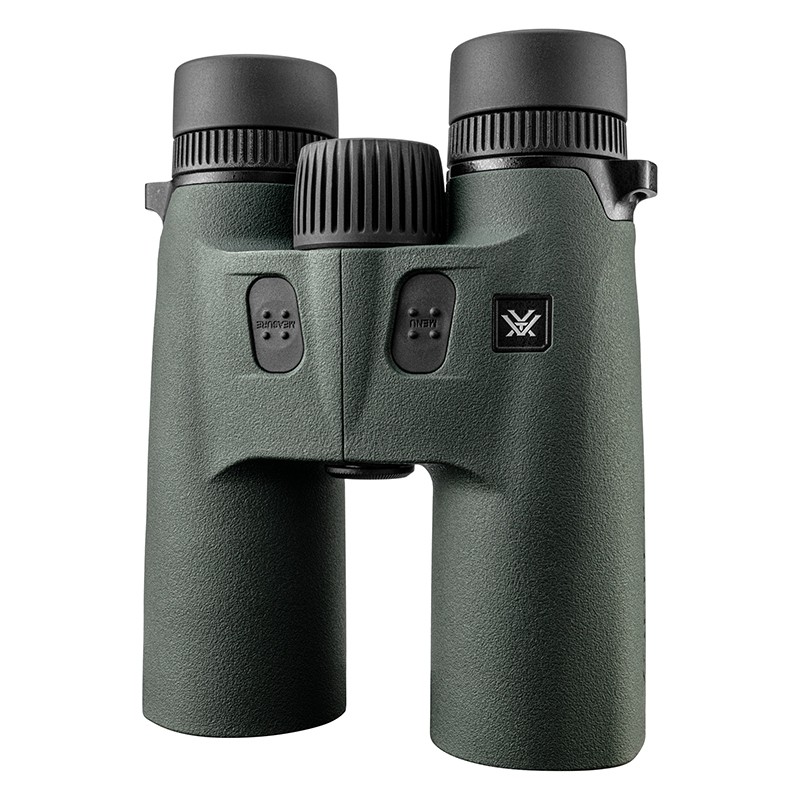

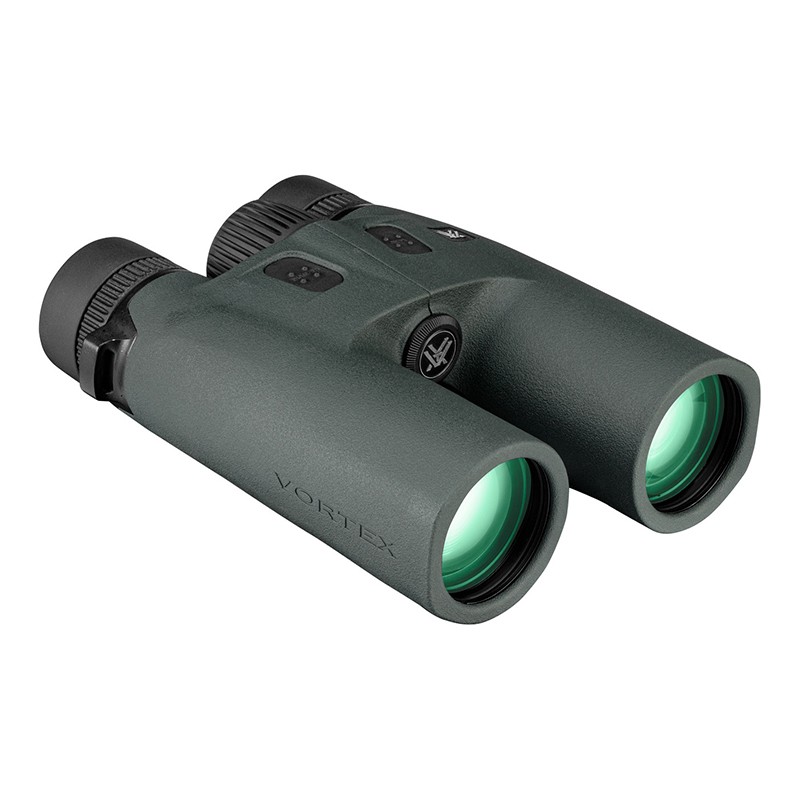

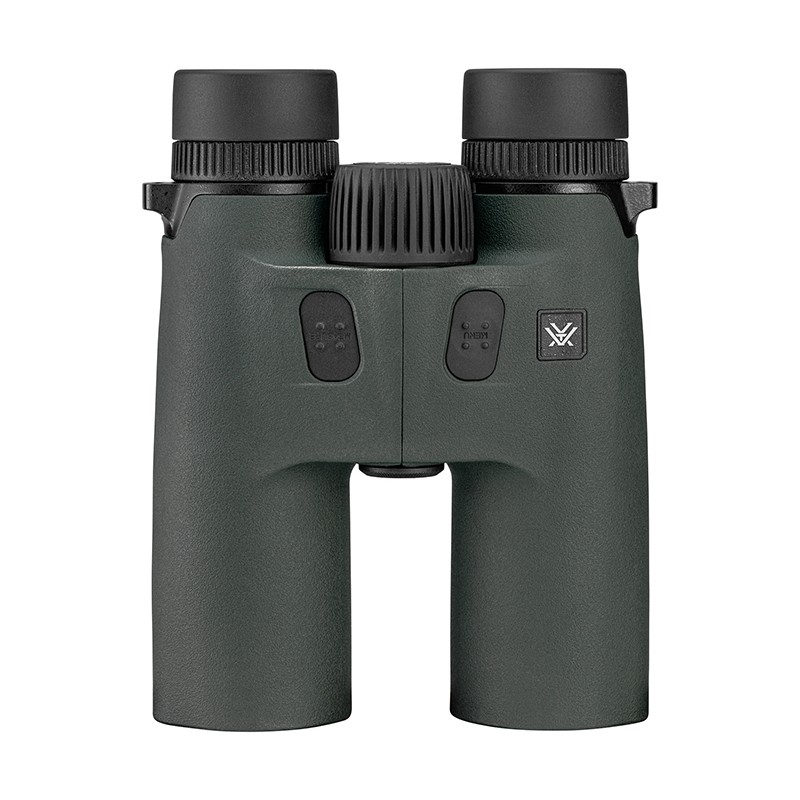

Ranger HD 3000 10x42 Laser Rangefinding Binocular

Its slim design, HD clarity and precise ranging capability, combine to simplify and streamline your gear without compromising performance.

Apart from the HD quality optics that you would expect in a premium optic, the controls are all in "the right place", which combined with Red OLED Display ensures quick and easy use.

INCLUDED

Glasspak Binocular Harness (P400)
Rainguard
Tethered objective lens covers
Comfort neck strap
Lens Cloth
CR123 Battery

VIP Unconditional Lifetime Warranty

Optical Features
HD Lens Elements	HD (High Density) extra-low dispersion multi-coated glass delivers impressive resolution and colour fidelity, resulting in High Definition images.
Phase Correction	Used on roof prism models only—coating enhances resolution and contrast.

Construction Features
Roof Prisms	Valued for greater durability and a more compact size.
Waterproof	Optics are sealed with O-rings to prevent moisture, dust, and debris from getting inside the binocular.
Fogproof	Nitrogen gas purging guarantees fogproof and waterproof performance.
Rubber Armour	Provides a secure, non-slip grip, and durable external protection.
ArmorTek	Exterior lenses are protected by ArmorTek — an ultrahard, scratch-resistant compound that repels oil, dirt and the corrosive salts of fingerprints.

Convenience Features
Twist Eyecups	Twist up and down to precise, intermediate settings to maximize custom fit for comfortable viewing with or without spectacles.
Red OLED Display	Optimised for (OLED) low light.
Left eye Diopter	Adjusts for differences in a user's eyes +/-3.
Tripod Adaptable	Compatible with a tripod adapter, allowing use on a tripod or car window mount.

Performance Features
Ballistic Mode	Displays the actual line of sight range and wind/drop solution.
Best Mode	Displays the strongest range result. Intended to be the primary mode.
Last Mode	Displays the furthest distance when ranging/panning/scanning. Ideal for ranging targets behind potential obstructive objects in the foreground - like brush, trees and rocks.
HCD	Horizontal Component Distance (HCD) mode for angle compensated ranging.
Scan	This feature displays continual distance readings when panning across a landscape or tracking a moving target.
Ranging Format	Range in yards or meters.

Magnification	10 x
Objective Lens Diameter	42 mm
Eye Relief	17 mm
Linear Field of View	335 feet/1000 yards
Angular Field Of View	6.4 degrees
Close Focus	1.83m / 6 feet
Interpupillary Distance	55-74 mm
Height	170.2mm / 6.7 inches
Width	129.5mm / 5.1 inches
Weight	919g / 32.4 ounces
Reflective Range	Up to 3,000 yards / 2,743m
Tree Range	up to 1,800 yards / 1,646m
Deer Range	up to 1,500 yards / 1,372m
Minimum Range	up to 6 yards / 5.5m

The Ranger HD 3000 has a Red OLED Display,optimised for low light The ranging modes are; Line of Sight (LOS) - Displays the actual line of sight range. Horizontal Component Distance (HCD) - Displays the slope angle compensated for target distance. Scan Feature - Displays continuous distance readings while panning across a landscape. Low Battery Icon Yards and/or Metres Displays 5 step brightness settings.
