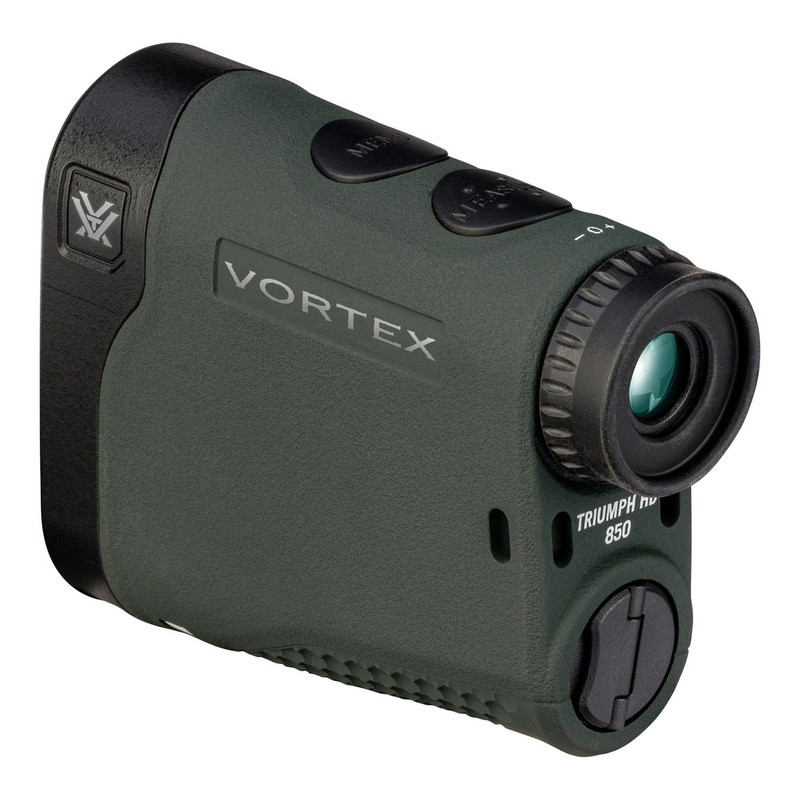

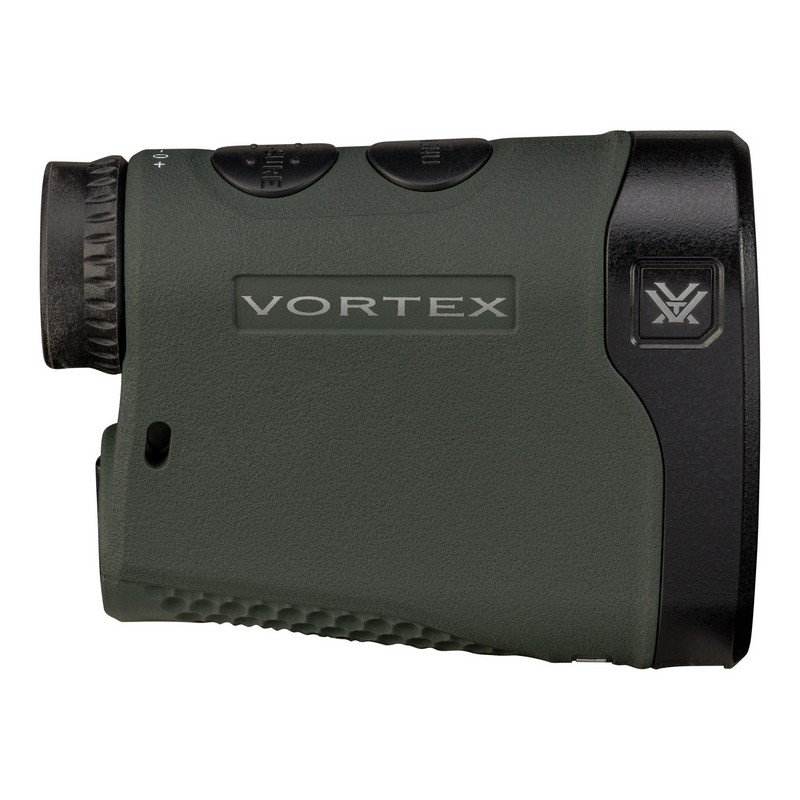

Triumph HD 850 Rangefinder with HCD — Horizontal Component Distance

We accept that not everyone wants or even needs longer ranging, that is why we have the lightweight Triumph HD 850, with the clue in its name as it ranges reflective targets up to 850yds / 777metres away. For its price, the Triump HD 850 sports a range of impressive features and fits nicely below the other higly featured rangefinders in the Vortex range.

The Triumph HD 850 is the latest addition to Vortex's Rangefinder products. The extremely effective angle compensated laser rangefinder features three targeting modes (Normal Mode, First Mode and Last Mode) for any ranging environment. The primary HCD (Horizontal Component Distance) range mode provides key angle compensated range information required by many users that require ranging capability over this sort of distance in a simple, quick to read display. The Triumph HD 850 also has a LOS (Line of Sight) range mode and scan feature.

Note

Compact, ergonomic and very lightweight at just 4.6oz / 131g the Triumph HD 850 is easy to use and runs on a standard CR2 battery.

Vortex VIP Warranty - Covered by Vortex's Unlimited Lifetime Warranty

High Density Glass optical system for excellent resolution, colour fidelity and edge-to-edge sharpness.

Fully multi-coated lenses increase light transmission for maximum image brightness.

Black LCD Display is easy to read in bright sunlight.

Nitrogen Gas purging gaurantees fogproof and waterproof performance.

O-ring seals prevent moisture, dust and debris getting inside in all environments.

INCLUDED

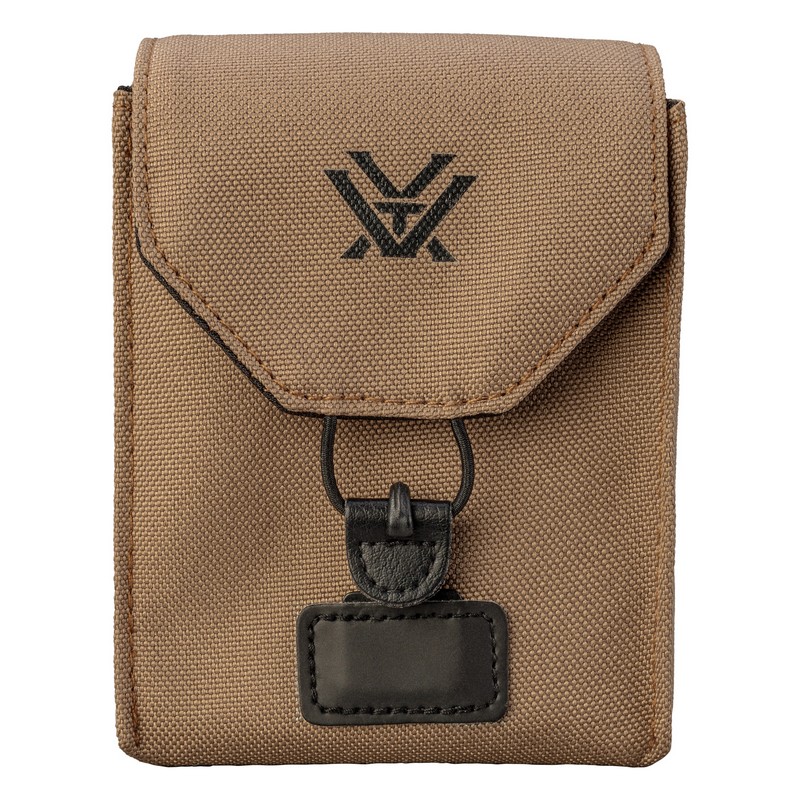

Soft carry case
Wrist lanyard
Lens cloth
CR2 battery

VIP Unconditional Lifetime Warranty

Optical Features
HD Optical System	Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding colour fidelity, edge-to-edge sharpness and light transmission.
Fully Multi-Coated Lenses	Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.

Construction Features
Waterproof	O-ring seals prevent moisture, dust and debris from penetrating the rangefinder for reliable performance in all environments.
Rugged Design	Built to handle tough situations. Compact and lightweight.
Diopter	Adjusts for differences in a user's eyes.
Black LCD Display	Easy to read in bright sunlight.

Performance Features
HCD	Horizontal Component Distance (HCD) mode for angle compensated ranging.
LOS	Line of Sight (LOS) mode displays actual line of sight range.
Scan	This feature displays continual distance readings when panning across a landscape or tracking a moving target.
'Normal' Mode	The standard mode providing the target's range with the strongest range result. Recommended for most situations.
'First' Mode	Displays the closest distance when ranging - Ideal for ranging smaller targets in front of other larger, more reflective targets.
'Last' Mode	Displays the furthest distance when ranging - Ideal for ranging a specific target behind a group of objects such as trees or bushes.
Easy-to-use Menu	Intuitive, easy-to-use menus feature a simple, clean illuminated display.

Range (Reflective)	6-850 yards
Range (Non-reflective)	6-350 yards
Accuracy	+/- 0.5 yard @ 100 yards
Magnification	5 x
Linear Field of View	335 feet/1000 yards
Angular Field of View	6.4 degrees
Eye Relief	13mm
Length	9.65cm / 3.8 inches
Height	7.87cm / 3.1 inches
Width	3.56cm / 1.4 inches
Weight	130g / 4.6 ounces

HCD Corrected Shoot-To Range

The Triumph HD 850 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give the critical distance data needed to take accurate ranging measurements. It is capable of ranging reflective targets to 850 yards. with an ultra-fast readout on non-reflective targets to 350 yards.
