Vortex Razor HD 4000 Rangefinder - Vortex Optics at Newpro UK Ltd

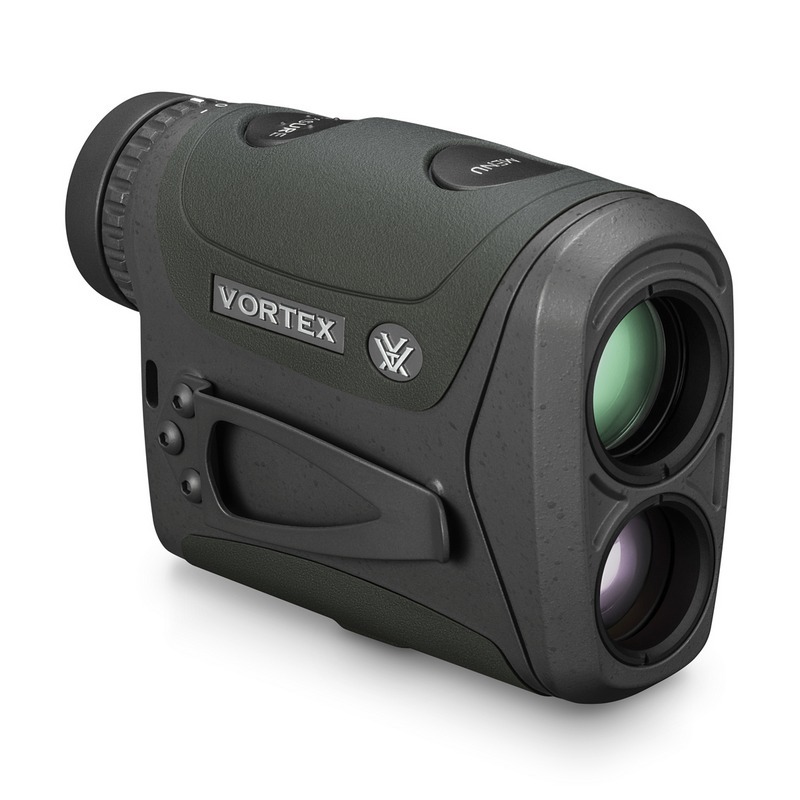

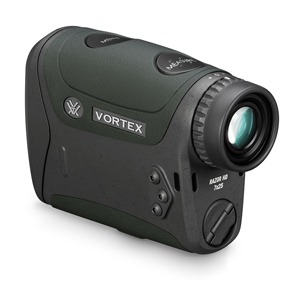

Razor HD 4000 Rangefinder with HCD — Horizontal Component Distance

The Razor HD 4000 is the premium product in Vortex's growing offering of compact rangefinder products. The extremely effective angle compensated laser rangefinder features four targeting modes (Normal Mode, First Mode, Last Mode and Extended Laser Range Mode) for any ranging environment. The primary HCD (Horizontal Component Distance) range mode provides key angle compensated range information required by many users that require ranging capability over this sort of distance in a simple, quick to read display. The Razor HD 4000 also has a LOS (Line of Sight) range mode and scan feature.

	Non-Reflective Target	Reflective Target
Normal Mode	1600yards (1463m)	2400 yards (2194m)
Normal Mode (Scan)	2000yards (1829m)	2400 yards (2194m)
ELR Mode	2200yards (2012m)	4000 yards (3658m)

The HD Optical System, optimized with select glass elements delivers exceptional resolution, cuts chromatic aberration and provides outstanding colour fidelity along with edge-to-edge sharpness and light transmission in combination with XR™ Plus Multi-Coatings on all air-to-glass surfaces to provide maximum light transmission for peak clarity and the pinnacle of low-light performance.

O-rings seal the Razor HD 4000 for waterproof performance. It can be set to read in yards or meters to accommodate user preference and has 4 modes of ranging including and Extreme Long Range setting. Ideal for sporting use such as golf or target shooters, the Vortex Razor HD 4000 is sure to be a useful addition to your kit bag.

Note

Compact, ergonomic and lightweight, the Razor HD 4000 is easy to pack or you can clip the unit to a belt, pocket, or other flat edged surface for easy access. Clip can be mounted to right or left side of the unit or completely removed. Runs on a standard CR2 battery.

INCLUDED

Utility clip
Soft carry case
CR2 battery

VIP Unconditional Lifetime Warranty

Optical Features
HD Optical System	Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding colour fidelity, edge-to-edge sharpness and light transmission.
XR™ Plus Fully Multi-Coated Lenses	Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.

Construction Features
ArmorTek®	Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Waterproof	O-ring seals prevent moisture, dust and debris from penetrating the rangefinder for reliable performance in all environments.
Rugged Design	Built to handle tough situations. Compact and lightweight.
Rubber Armour	Provides a secure, non-slip grip, and durable external protection.
Diopter	Adjusts for differences in a user's eyes.
Tripod Adaptable	Has a 1/4" tripod thread, allowing use on a tripod, monopod or car window mount.
Magnesium Chassis	Decreases weight and increases strength.

Performance Features
HCD	Horizontal Component Distance (HCD) mode for angle compensated ranging.
LOS	Line of Sight (LOS) mode displays actual line of sight range.
Scan	This feature displays continual distance readings when panning across a landscape or tracking a moving target.
Easy-to-use Menu	Intuitive, easy-to-use menus feature a simple, clean illuminated display.
Ranging Format	Range in yards or meters.
ELR	Ideal for ranging targets at extreme distances. A slightly longer response time allows greatly extended range distances. Best used on a tripod.
AWC	All Weather Capable ranging allows the unit to return a distance even in a variety of adverse weather conditions.

Range (Reflective)	5-4000 yards
Range (Non-reflective)	5-2200 yards
Accuracy	+/- 0.5 yards @ 5-200 yards
Accuracy	+/- 1 yard @ 200-1000 yards
Accuracy	+/- 2 yards @ >1000 yards
Max Angle Reading	+/- 70 degrees
Magnification	7 x
Objective Lens Diameter	25 mm
Linear Field of View	341 feet/1000 yards
Angular Field of View	6.5 degrees
Eye Relief	16-19 mm
Length	11.4cm / 4.49 inches
Width	3.4cm / 1.34 inches
Weight	281g / 9.9 ounces

HCD Corrected Shoot-To Range

The Razor HD 4000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give the critical distance data needed to take accurate ranging measurements. It is capable of ranging reflective targets to 4000 yards with an ultra-fast readout or non-reflective targets to 2200 yards.
