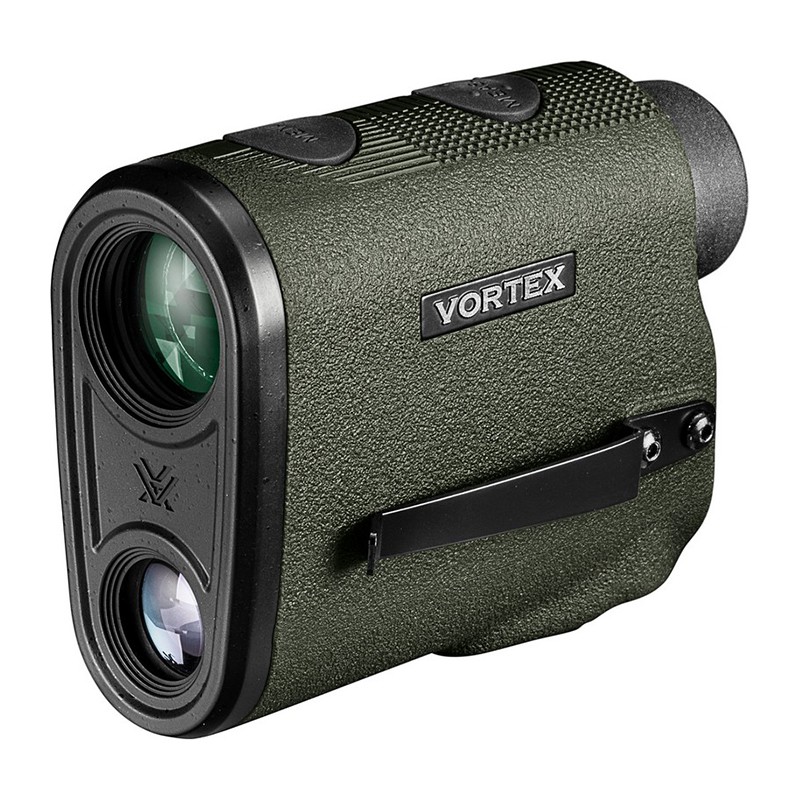

Diamondback HD 2000 Rangefinder with HCD — Horizontal Component Distance

The Diamondback HD 2000 is one of three recent additions to Vortex's offering of Rangefinder products. The extremely effective angle compensated laser rangefinder features two targeting modes (Normal Mode and Last Mode) for any ranging environment. The primary HCD (Horizontal Component Distance) range mode provides key angle compensated range information required by many users that require ranging capability over this sort of distance in a simple, quick to read display. The Diamondback HD 2000 also has a LOS (Line of Sight) range mode and scan feature and has a new red OLED display keeping the readout clear in all lighting conditions.

The HD Optical System, optimized with select glass elements delivers exceptional resolution, cuts chromatic aberration and provides outstanding colour fidelity along with edge-to-edge sharpness and light transmission in combination with XR™ Plus Multi-Coatings on all air-to-glass surfaces to provide maximum light transmission for clarity and excellent low-light performance.

O-rings seal the Diamondback HD 2000 for waterproof performance. Ideal for sporting use such as golf or target shooters, the Vortex Diamondback HD 2000 is sure to be a useful addition to your kit bag.

Note

Compact, ergonomic and lightweight at just 7.6oz / 216g the Diamondback HD 2000 is easy to pack or you can clip the unit to a belt, pocket, or other flat edged surface for easy access. Clip can be mounted to right or left side of the unit or completely removed. Runs on a standard CR2 battery.

INCLUDED

New design of soft carry case
Wrist lanyard
Bungee cord lanyard
Hook & Loop Harness attachment
Utility Clip
2mm Hex Wrench / Allen Key
Lens cloth
CR2 battery

VIP Unconditional Lifetime Warranty

Optical Features
HD Optical System	Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding colour fidelity, edge-to-edge sharpness and light transmission.
XR™ Fully Multi-Coated Lenses	Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.

Construction Features
ArmorTek®	Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Waterproof	O-ring seals prevent moisture, dust and debris from penetrating the rangefinder for reliable performance in all environments.
Rugged Design	Built to handle tough situations. Compact and lightweight.
Rubber Armour	Provides a secure, non-slip grip, and durable external protection.
Diopter	Adjusts for differences in a user's eyes.
Tripod Adaptable	Has a 1/4" tripod thread, allowing use on a tripod, monopod or car window mount.
Red OLED Display	The lastest display technology ensures the readout is clear in all lighting conditions.

Performance Features
HCD	Horizontal Component Distance (HCD) mode for angle compensated ranging.
LOS	Line of Sight (LOS) mode displays actual line of sight range.
Scan	This feature displays continual distance readings when panning across a landscape or tracking a moving target.
'Normal' Mode	The standard mode providing the target's range with the strongest range result. Recommended for most situations.
'Last' Mode	Displays the furthest distance when ranging - Ideal for ranging a specific target bwehind a group of objects such as trees or bushes.
Easy-to-use Menu	Intuitive, easy-to-use menus feature a simple, clean illuminated display.
Ranging Format	Range in yards or meters.

Range (Reflective)	5-2000 yards
Range (Non-reflective)	5-1400 yards
Accuracy	+/- 1 yard @ 100 yards
Max Angle Reading	+/- 60 degrees
Magnification	7 x
Objective Lens Diameter	24 mm
Linear Field of View	335 feet/1000 yards
Angular Field of View	6.4 degrees
Eye Relief	16mm
Length	10.4cm / 4.1 inches
Width	4.6cm / 1.8 inches
Weight	216g / 7.6 ounces

HCD Corrected Shoot-To Range

The Diamondback HD 2000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give the critical distance data needed to take accurate ranging measurements. It is capable of ranging reflective targets to 2000 yards. with an ultra-fast readout on non-reflective targets to 1400 yards.
